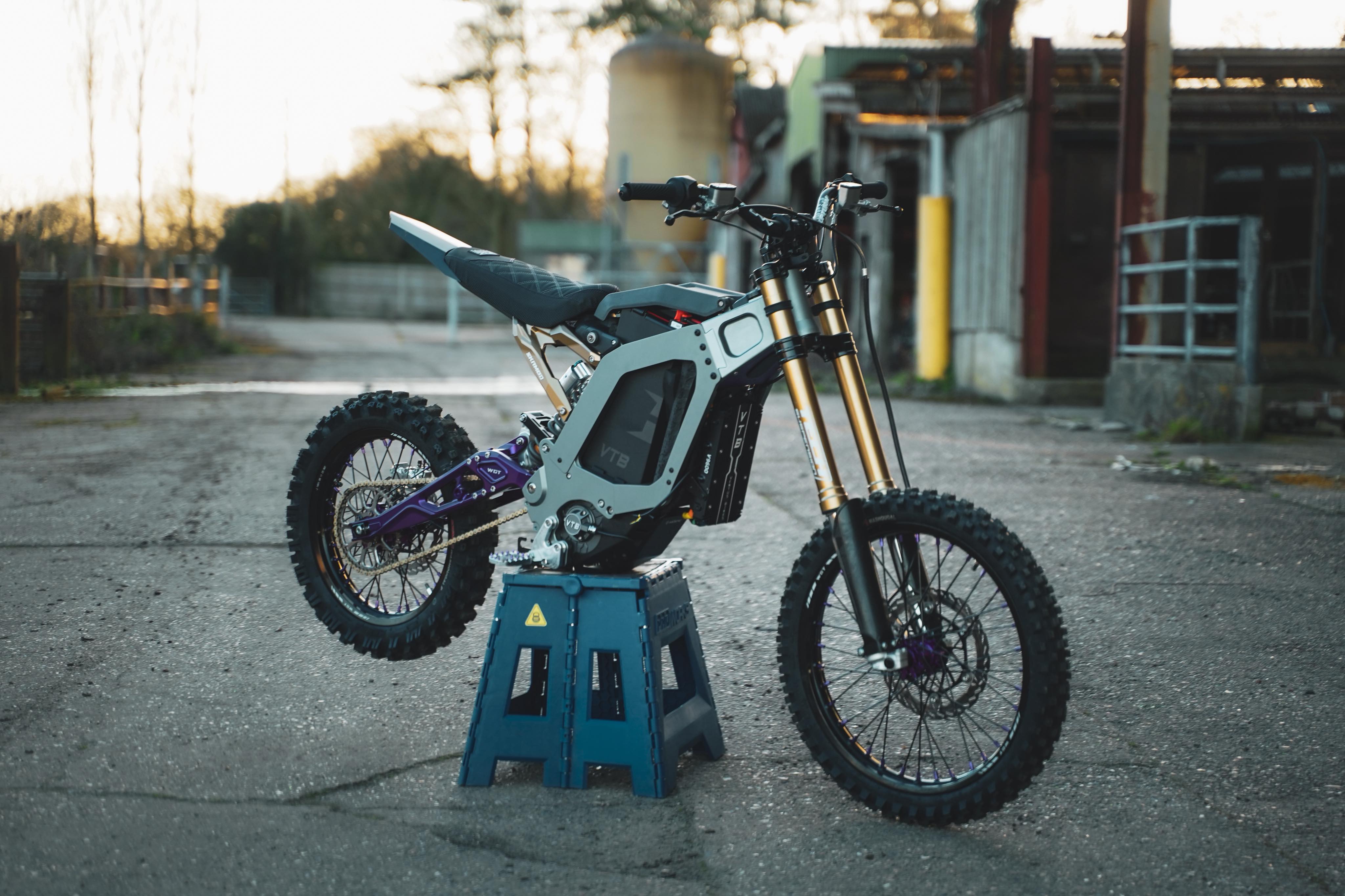

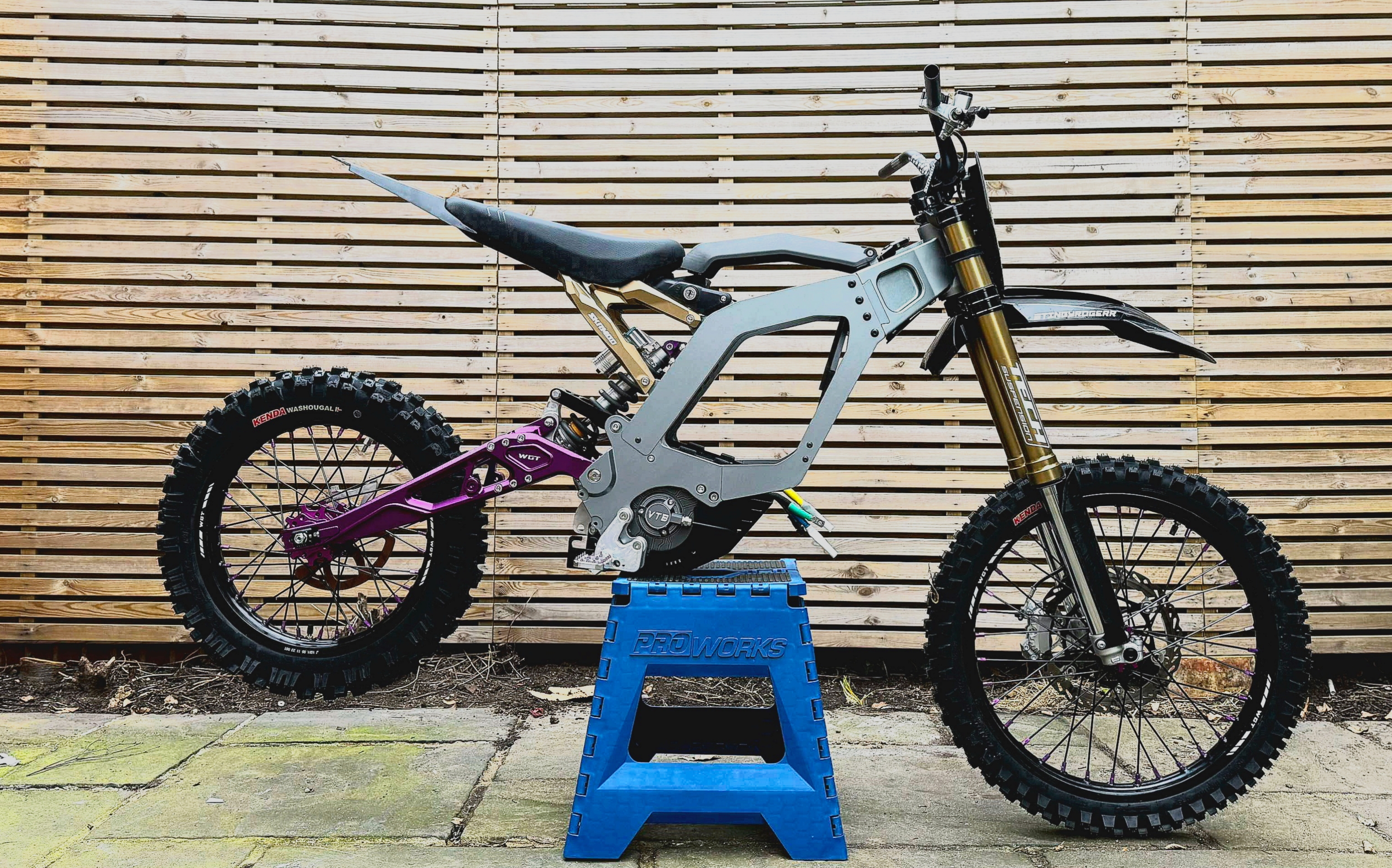

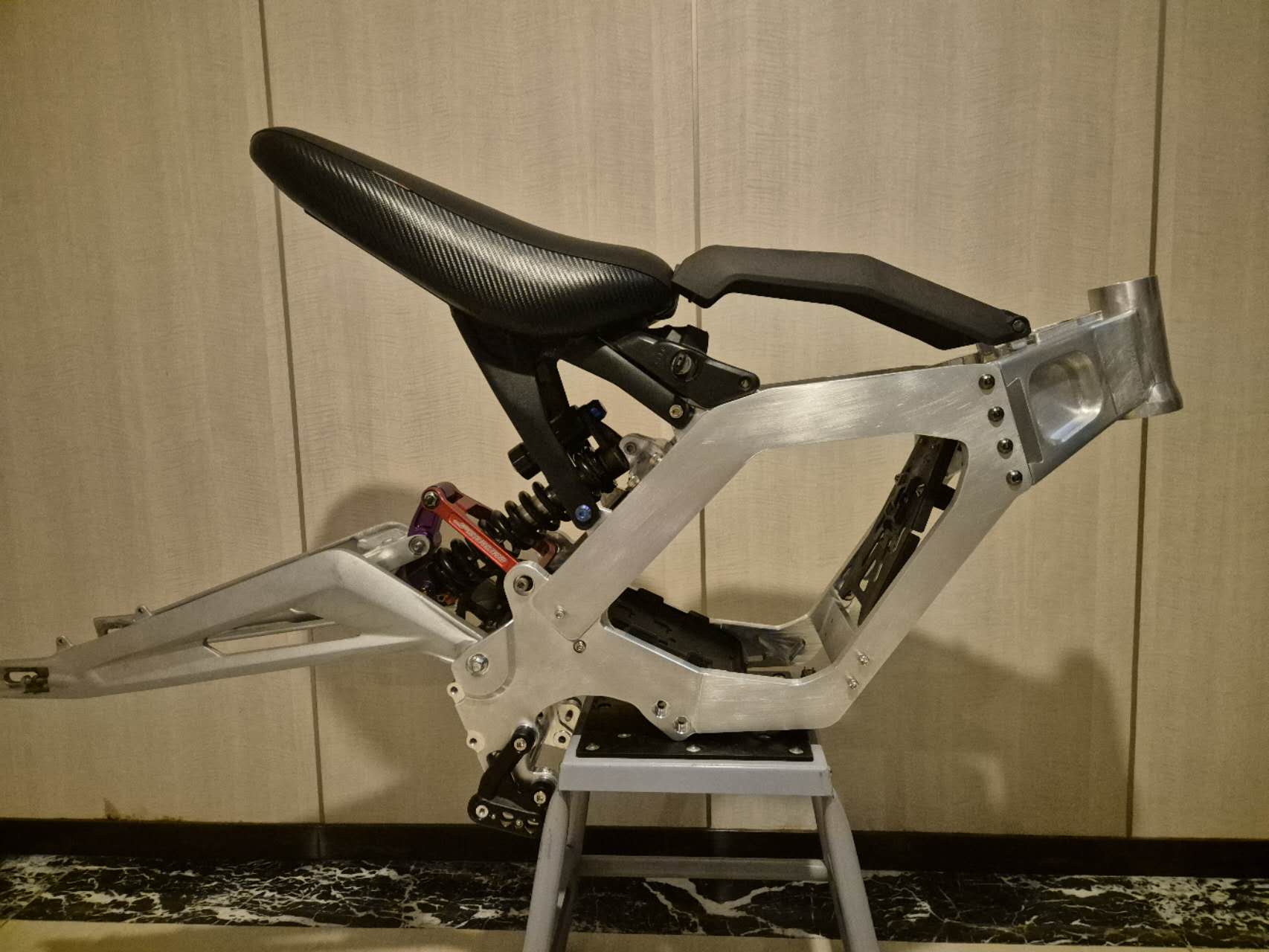

Dirt Pig
$1600.00$1489.00
Designed and built for an extended bike length feeling
LB parts fit straight in without any modifications.
Longer wheel base 70mm
Larger battery compartment 70mm ( LENGTH WISE)
Increased head tube diametre
Single piece sides
Head tube underplate removal for easy access
secondary foot peg mount moves the foot pegs forward and down 27mm
Specs
6061 7075 alloy
weight 9.50kg
All stock LBX components will fit, (slight modifications may be needed for some aftermarket parts)
Currently (NOT) Compatible with Torp TM 25 TM 40 Motors

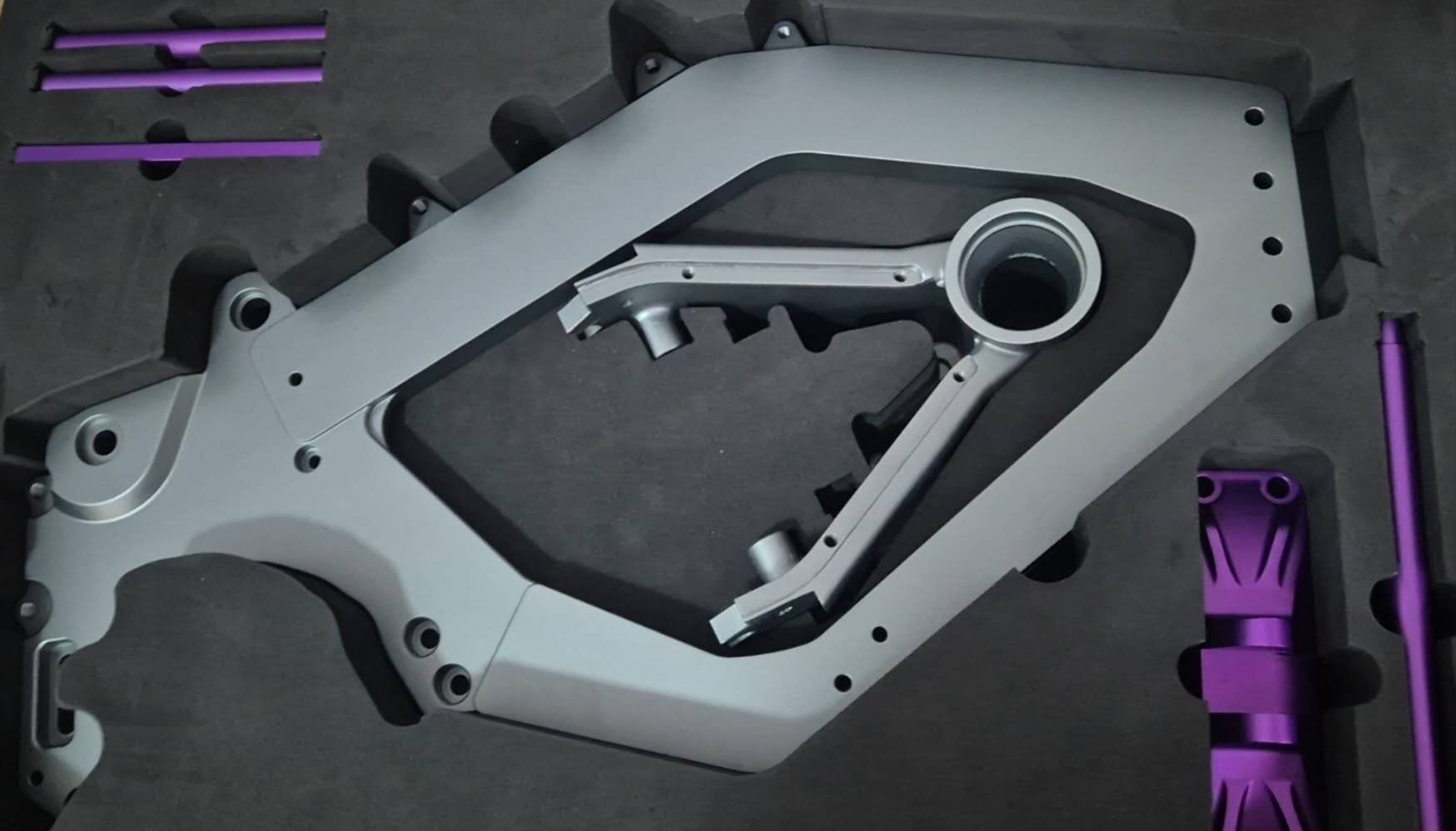

Includes complete frame assembly
1X FRAME
2X LB FOOT PEGS
2X 35MM BATTERY PINS
8X M6 25MM 12.9 GRADE NICKEL PLATED BOLT
22X M8 20MM 12.9 GRADE NICKEL PLATED BOLT
2X SWING ARM SPACER
1X BEARING/SPACER WASHER KIT
1X PEG SUPPORT ROD
2X 5MM PEG WASHER
4X M6 8MM 12.9 GRADE NICKEL PLATED BOLT
4X M8 25MM 12.9 GRADE NICKEL PLATED BOLT
2X WASHER FOR SUPPORT ROD BOLTS
2X M6 12MM 302 STAINLESS SUPPORT ROD
1X BATTERY COVER
Some motors may require phase extender leads
Lead time 7 weeks
